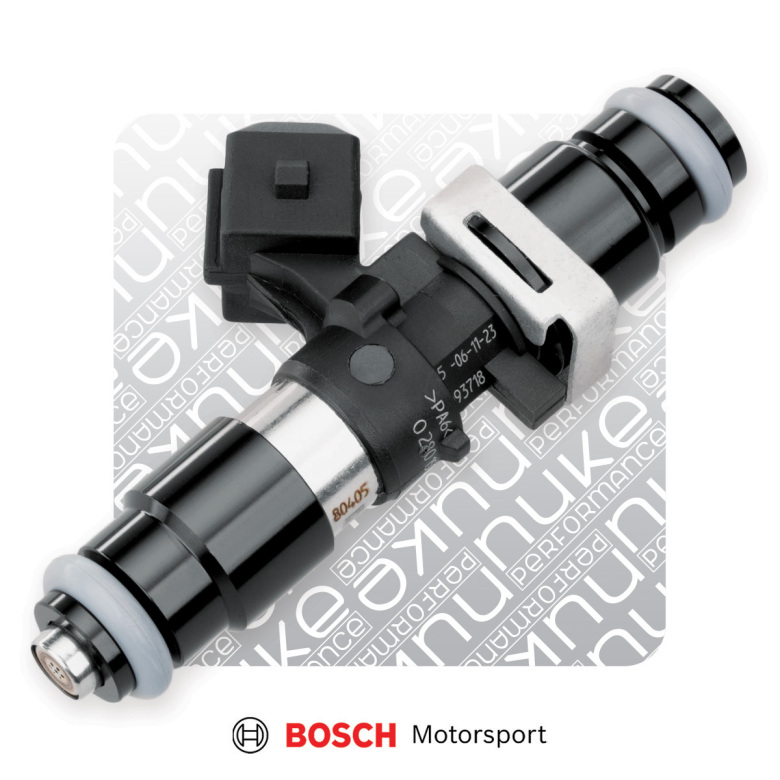

Bosch injector 1200cc, 65mm (EV14L), 5pcs flow matched

Partno: 130-05-120

Price:

€ 658,75
    Add ons:

   FAST SHIPPING WORLDWIDE
   60-DAY SATISFACTION GUARANTEE
   SAFE AND SECURE
PAYMENT METHODS

Product information

Flow matched Bosch 1200cc modified injector, high impedance - adapted to 65mm (EV14L) to fit the Nuke Performance range of 5cyl fuel rails.

These injectors are equipped with the needed accessories according to a Bosch EV14L injector (60,65mm between O-rings / 65mm center to center of the O-rings).

 High impedance 1200cc injector from Bosch Motorsport
 Corresponding to a Bosch EV14 L injector length
 Kit of x5 flow matched 1200cc injectors
 Filtered top adapter for additional protection

When ordering injectors, always check the specifications of your fuel rail to accommodate the accurate injector type. Most Nuke Performance fuel rails use EV14L-sized injectors, available between 630cc to 2200cc.



 Bosch Motorsport 1200cc Injector specifications :
For guidance on selecting the right injector for your application, please visit our FAQ (available here) for more information.

 Bosch part number 1280158xxx (modified)
 OEM part number N/A
 Type - w/o included adapters 39mm EV14K (Compact)
 Type - with included adapters 65mm EV14L (Long)
 Connector Bosch JPT EV1 Minitimer Jetronic
 O-ring top / bottom 14mm Viton / 14mm Viton
 Resistance 12 ohm
 Volume at 3 BAR N/A
 Fuel compatibility Petrol / Gasoline / E85 / M100 *
 Nozzle / Spray pattern Extended tip / Single cone spray
 For motorsports use YES
 Part # / EAN 130-05-120 / 7340209508406

* Note: If using the injector with methanol, flush it with regular fuel after use. Do not leave methanol in the injector for extended periods.

 Bosch 1200cc Injector capacity :
Test conditions can differ from real-world use due to equipment and technical factors. However, this info helps understand injector performance and when choosing other fuel system components.

 Learn more : Visit our FAQ / Injector calculator

 Measured peak static flow in a test environment
 2 BAR (29 PSI) N/A
 3 BAR (43.5 PSI) N/A
 4 BAR (58 PSI) N/A
 5 BAR (78.5 PSI) N/A
 6 BAR (88 PSI) N/A
 7 BAR (101.5 PSI) N/A

 Petrol (10% margin) Turbo charged Naturally aspirated
 1 cyl 1x157 = 157hp 1x205 = 205hp
 4 cyl 4x157 = 628hp 4x205 = 820hp
 5 cyl 5x157 = 785hp 5x205 = 1025hp
 6 cyl 6x157 = 942hp 6x205 = 1230hp
 8 cyl 8x157 = 1256hp 8x205 = 1640hp

 E85 (10% margin) Turbo charged Naturally aspirated
 1 cyl 1x137 = 137hp 1x171 = 171hp
 4 cyl 4x137 = 548hp 4x171 = 684hp
 5 cyl 5x137 = 685hp 5x171 = 855hp
 6 cyl 6x137 = 822hp 6x171 = 1026hp
 8 cyl 8x137 = 1096hp 8x171 = 1368hp


Injector calculation : The figures listed above are based on a base pressure of 3 BAR (43.5 PSI) at idle, providing a quick overview of this injector's performance. For more details on selecting the best injector for your engine, visit our FAQ and use our Injector Calculator (available here).



 Bosch injector 1200cc, 65mm (EV14L), 5pcs flow matched includes:
5 x Bosch Motorsport modified injector (# 0280158xxx modified)
5 x Injector adapter 14mm short - with filter (# 135-01-101)
5 x Injector adapter 14mm short - without filter (# 135-01-102)
5 x Bosch injector clip (# 135-01-005)
1 x Flow match certificate



 Optional flow-matching for optimized performance and consistent fuel delivery for high-performance applications.
We offer all of our injectors as flow-matched in kits of 4, 5, 6, and 8 pcs (available here). Flow-matched injectors ensure consistent fuel delivery, optimizing performance, efficiency, and smoothness. Out-of-the-box injectors may vary in flow, leading to uneven fuel distribution and reduced performance. We recommend flow-matched injectors for all high-performance or tuned engines, where precise fuel delivery is critical. We deliver most injectors within a 1% difference, with a top difference of 2% for smaller batch injectors.
Bosch injector 1200cc, 65mm (EV14L), 4pcs flow matched Part # : 130-04-120
Bosch injector 1200cc, 65mm (EV14L), 5pcs flow matched Part # : 130-05-120
Bosch injector 1200cc, 65mm (EV14L), 6pcs flow matched Part # : 130-06-120
Bosch injector 1200cc, 65mm (EV14L), 8pcs flow matched Part # : 130-08-120

 Injectors - Everything you need to know (FAQ)
 Accessories / Spare Parts




Bosch Motorsport :
 Bosch Motorsport injectors provide high precision, reliability, and durability, engineered for optimal performance in demanding applications. Known for consistent fuel delivery, they are ideal for racing and performance tuning, especially when paired with Nuke Performance's range of fuel system components.
