Audi & VW 4cyl 1.8t 20V fuel rail

Nuke Performance fuel rail for the Audi & VW 4cyl 1.8t 20V engines, oversized internals, lightweight design, and equipped with our unique injector safety clips.

The Audi & VW 4cyl 1.8t 20V fuel rail is delivered with brackets for the Audi & VW 4cyl 1.8t 20V engines and allows you to go with AN fuel lines and aftermarket injectors for your Audi or Volkswagen engine.

 Lightweight fuel rail that fits Audi & VW 1.8t 20V intakes
 To be used with Bosch EV14S type injectors
 Included adapters to accommodate different intakes
 AN-8 ORB threads in both ends enable a high fuel flow
 Delivered with brackets for easy mount to VW and Audi intakes
 AN-6 ORB side outlet/inlet for optional applications
 Safe for all types of fuels, including alcoholic fuels such as E85

The Nuke Performance's newest generation of fuel rails grants an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that fuel rails from Nuke Performance have become famous for, which grants a leakproof seal even during a crash where the fuel rail would get torn out of the intake manifold.

 Perfect fitment for the Audi & VW 4cyl 1.8t 20V engines, delivered with the needed hardware to mount to the intake.
The Nuke Performance Audi & VW 4cyl 1.8t 20V fuel rail is delivered with brackets for the popular 1.8t 20V engines used by Audi and Volkswagen.
 Audi A3 1.8t 20v (MK1-8L) 1996-2003
 Audi A4 1.8t 20v (B6) 2002-2005
 Audi A6 1.8t 20v (C5) 1998-2004
 Audi A6 Allroad 1.8t 20v (C5) 1998-2004
 Audi S3 1.8t 20v (MK1-8L) 1996-2003
 Audi TT 1.8t 20v (MK1-8N) 2000-2006
 Volkswagen Beetle 1.8t 20v (1C-9C-1Y) 1998-2011
 Volkswagen Golf 1.8t 20v (MK4) 1999-2005
 Volkswagen Golf GTI 1.8t 20v (MK4) 1999-2005
 Volkswagen Jetta / Jetta GLI 1.8t 20v (MK4) 1999-2005
 Volkswagen Passat 1.8t 20v (B5-B5.5) 1998-2005

Please be aware that this fuel rail is only compatible with Audi and Volkswagen's 20v 1.8t engine. This version will work only with 14mm injectors, such as Bosch EV14S injectors.

 AN-8 ORB main ports and an AN-6 ORB side port, we offer a wide range of fittings and adapters to choose from.
The fuel rail uses AN-8 ORB threaded fittings for each end and offers an additional side port with AN-6 ORB thread. We provide various fittings and our low-profile full-flow banjo fittings for a space-efficient installation.

 AN-8 ORB main ports and AN-6 ORB side port

The fuel rail is delivered with two AN-6 ORB Plugs for the side port but the main port fittings are sold as accessories.
AN-8 ORB to AN-6 Male Part # : 700-04-104
AN-8 ORB to AN-8 Male Part # : 700-04-105
AN-8 ORB to AN-10 Male Part # : 700-04-106
AN-8 ORB to AN-6 Male Full Flow Banjo Part # : 710-01-105
AN-8 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-106
AN-8 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-107
AN-8 ORB Plug Part # : 700-04-116
AN-8 ORB to 1/8 NPT Female Adapter Part # : 700-04-129

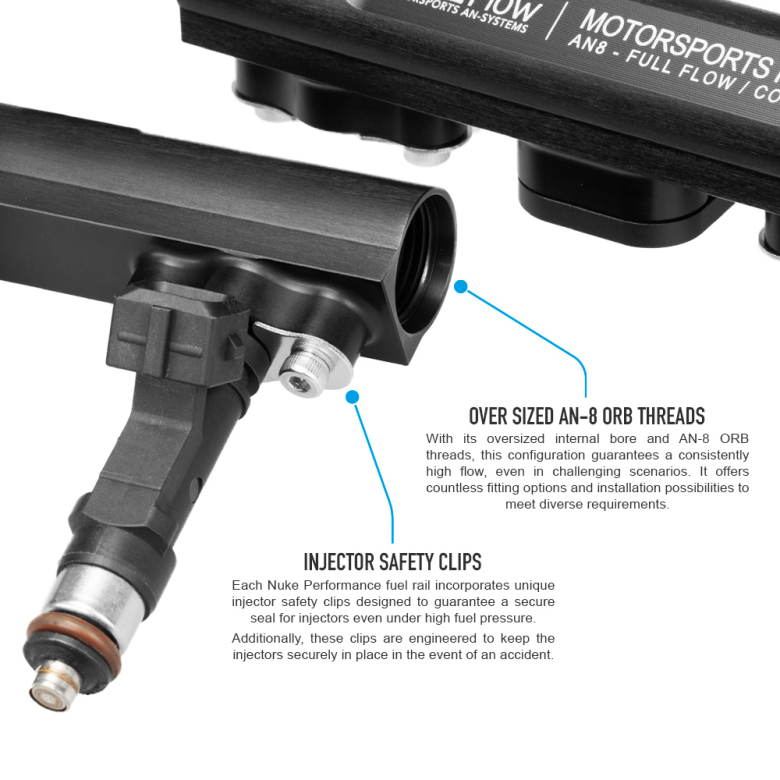

 All Nuke Performance fuel rails use unique Injector Safety Clips that ensure a perfect seal under all conditions.
One distinctive feature of Nuke Performance is its use of injector safety clips, designed to uphold a flawless seal for injectors even under the strain of extreme fuel pressure.

 Ensures a safe and secure seal even during extreme fuel demands

Whether during assembly, engine installation, or in the unfortunate event of an accident, these clips ensure the injectors remain securely attached to the rail. This design prevents any fuel spillage, even in scenarios where the fuel pump continues to run or there is residual pressure in the fuel system.

 Designed, and developed in Sweden, guaranteeing the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The Audi & VW 4cyl 1.8t 20V fuel rail is of the highest possible quality and has the same hallmark as all the other lightweight motorsports products from Nuke Performance. The parts from Nuke Performance are co-developed with worldwide motorsports teams, and BMW experts, making sure that functionality, as well as the design, meets the absolute highest standards, or even creating a standard of its own.
Order your aftermarket fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.

There is no substitute for the quality of Nuke Performance.

 Nuke Performance Audi & VW 4cyl 1.8t 20V fuel rail Specifications:
For more information about specifications, view the product sheet.

 * not included, make sure to select the needed fittings when placing an order
** old generation that did not include brackets for the 1.8t 20V engines

 Nuke Performance Audi & VW 4cyl 1.8t 20V fuel rail includes:
1 x AN-8 ORB Full Flow fuel rail profile for Audi & VW 1.8t 20v engines
2 x Aluminum brackets for Audi & VW 1.8t 20v engines
1 x AN-6 ORB Plug
4 x Nuke Performance Injector safety clips
8 x MC6S M4x6mm stainless steel bolts
4 x K6S M6x10mm stainless steel bolts
2 x K6S M6x20mm stainless steel bolts *
2 x K6S M6x30mm stainless steel bolts *
2 x Stainless steel 8mm spacer *
2 x Stainless steel 13mm spacer *

* The different stainless steel spacers used depend on the engine version. Use the different bolts depending on the setup needed.

 Download Product Sheet (.pdf)
 Accessories / Spare Parts

 The fuel rail is delivered without fittings and injectors, these need to be purchased as accessories.

 This fuel rail replaces our old Audi 4cyl 1.8t version with part number 100-03-201, which is no longer available for purchase.
