Air Jack 90 Competition Complete Set 4pc, 8 BAR / 120 PSI
Price:
FAST SHIPPING WORLDWIDE
60-DAY SATISFACTION GUARANTEE
SAFE AND SECURE PAYMENT METHODS
Product information
Complete set of 4pc Nuke Performance 8 BAR / 120 PSI Air Jacks 90 Competition: Fast, lightweight, reliable, and easy to use air jack kits.
A product born out of the request from motorsports for an easy to use, lightweight, and reliable air jack setup that can be activated by an air supply pressure of as low as 8 BAR / 120 PSI. Lifts your vehicle to new heights by the use of a common workshop compressor.
Lightweight motorsports onboard air jacks
8 BAR / 120 PSI work pressure
Works with common workshop air compressors
Complete set with jacks, safety props and hose kit
Set lifts 1608 kg / 3544 lb at as low as 8 BAR / 120 PSI
Body and piston of high strength aluminum
Total lift length of 251mm / 9.88"
The Nuke Performance 8 BAR (120 PSI) Air Jack 90 Competition is fast, lightweight, reliable and extremely easy to use and can be activated by an air supply pressure of as low as 8 BAR (120 PSI). Prepare yourself for anything that may go wrong during the track day and with these air jacks you are ready for fast and effective repairs so you can quickly hit the race track again.
Made of high strength aluminum for low weight and extra durability

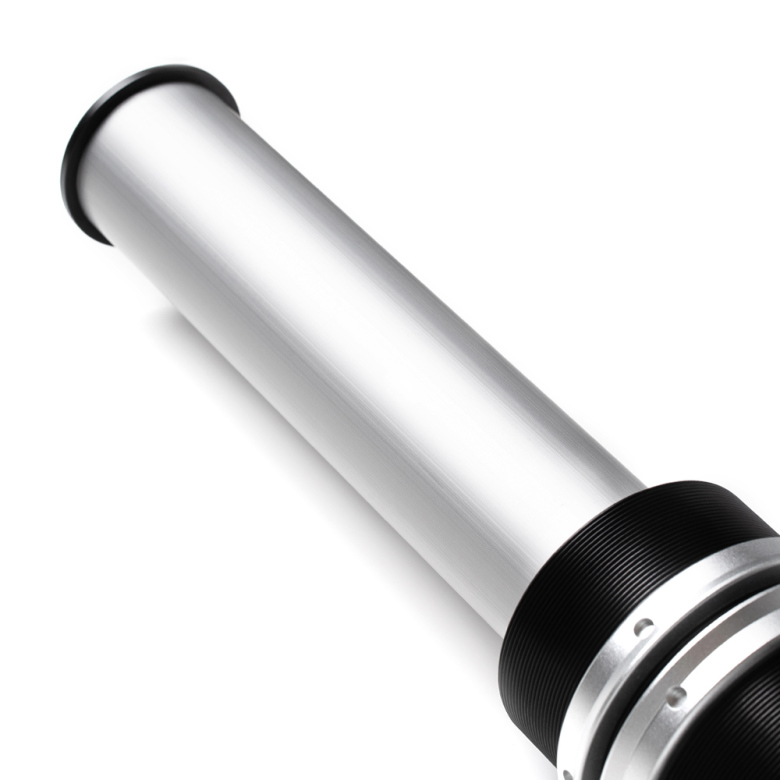

The body is made out of high strength, machined aluminum extrusion for the thinnest possible wall thickness to achieve the lowest possible weight without sacrificing functionality. It houses a high strength aluminum piston rod with an anodized finish for long lasting durability. The internal bearings are constructed of high strength, ultradurable, low friction polyoxymethylene - these air jacks are made tough to cope with the high demands from worldwide motorsports.
Works with an 8 BAR (120 PSI) common workshop air compressor
The Nuke Performance Air Jack 90C has an optimal operating pressure between 6-12 BAR (87 - 174 PSI), this means that it works with a regular workshop 8 BAR (120 PSI) air compressor so you do not need to bring a huge and expensive nitrogen tank. As most workshop air compressors are available in between 8 - 12 BAR (116 - 174 PSI) this is what these air jacks are specified to work with. At as low as 8 BAR (116 PSI), these air jacks will lift 402 KG (886 LB) each, and in a 4-jack system, it results in a full 1608 KG (3545 LB). This omits the need for additional equipment such as a compressed air bottle, lance, or high-pressure system.
Complete set of 4 jacks for all types of motorsports use
To make it as easy as possible for all types of motorsports such as drag racing, drifting, touring cars, sports cars, GT racing, time attack and more we have put together a complete set of 4 Air Jacks with suitable accessories. The Air Jack kit contains hoses, pneufit fittings, safety props, and air jacks to cover your every need. This kit includes 4pc air jacks and is the most common setup. One Air Jack is suggested to be placed next to each wheel and works perfectly on vehicles with an even weight distribution over the front and rear axle. Nuke Performance also offers complete sets of 2 and 3pc air jacks for other configurations.
Air Jack 2pc Complete Set Part # : 590-01-205
Air Jack 3pc Complete Set Part # : 590-01-203
The set comes with jacks, safety props, 10m (32.8ft) hose and fittings
The Nuke Performance 90C Air Jack kits are designed to be used together with 8 BAR (120 PSI) workshop air compressors and come complete with an easy-to-use quick valve with a common EURO / pneufit fitting that fits most common air compressors. The included bracket lets you mount it in an easy to reach place out of the risk of getting it contaminated by weather or dirt from the track. In the hose kit you get 10m (32.8ft) 8mm quick connect pneufit hose, 3x quick connect T-fittings, 4x quick connect 1/4" BSPP barb fittings for the Air Jack inlets and a petcock ball valve. This kit is ideal for most setups and is easy to install, durable and affordable.
How much do the Nuke Performance Air Jacks lift in a 4pc setup?
The Nuke Performance Air Jacks 90 Competition is made to use with an 8 BAR / 120 PSI air compressor, and thanks to its larger diameter and clever design it can lift 402kg (886 lb) at 8 BAR (116 PSI) and 603kg (1329 lb) at 12 BAR (174 PSI) each. Combined into a setup of 4 air jacks, it exceeds normal needs in motorsports.
| Set of 4pc at 8 BAR (116 PSI) | 1608KG (3545 LB) in total |
| Set of 4pc at 12 BAR (174 PSI) |
2412KG (5317 LB) in total |
Air Jack 90C Safety Props reduce the possibility of accidents

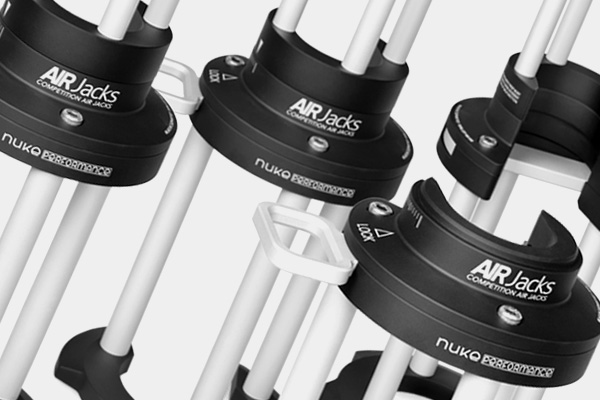

The Nuke Performance 90 Competition Air Jack sets comes with safety props included. When working on or beneath your vehicle, there is always a possibility of accidents. When your vehicle is lifted with the help of air jacks you must always use these air jack locks or traditional jacks to prevent an accident if the pressure drops due to leakage, malfunction or handling error. The Nuke Performance 90C Safety Props simply clip securely into place when the air jack is fully extended, are equipped with an easy to use handle and come in a practical carry bag.
Safety Prop Part # : 590-01-202
Second stage lift capacity with the Nuke Performance Elephant Feet gives you a total lift height of 480mm
With the Nuke Performance Elephant Feet set up for the Air Jack 90 Competition low-pressure air jacks, you can lift your vehicle in a second stage which gives you a total height of 480mm (18.9"), perfect for maintenance on the underside of the vehicle or for longer time storage within the workshop. Designed with a self-locking mechanism that guarantees secure and steady use. For easy storage and transport, add the optional hard case with a foam insert from Peli.
Air Jack 90 C Elephant Foot Part # : 590-02-101
Elephant Foot Peli Hard Case Part # : 590-10-201
How do I mount Air Jacks to my vehicle? We got you covered...
Made of steel and intended to be welded to the body or chassis of your build. Delivered untreated and easy to adjust to your required dimensions. If you go with the plate or bracket, we advocate the use of a lower and a higher attachment point to make the installation sufficiently durable and safe. All brackets materials and design are calculated according to what is needed, make it easy by using the Nuke Performance mounting accessories.
Steel Plate Part # : 590-10-109
Steel Bracket Part # : 590-10-108
Steel Tube Part # : 590-10-110
Developed in Sweden, guaranteeing the highest possible quality
The 90 Competition Air Jacks and Safety Props are developed, designed and manufactured by Nuke Performance for the highest possible quality and with the same hallmark as all the other parts in the lightweight motorsports range. There is no substitute for the quality of Nuke Performance!
Air Jack Specifications
For more information about specifications, view the product manual.
| Lift capacity 8 BAR (116 PSI) | 402 KG (886 LB) / each |
| Lift capacity 12 BAR (174 PSI) | 603 KG (1329 LB) / each |
| Outer diameter | 89.5mm (3.52") |
| Length retracted | 349mm (13.74") |
| Total lift height | 251mm (9.88") |
| Max operating pressure | 12 BAR (174 PSI) |
| Min / Max Ø mounting Hole | 90mm (3.54") / 95mm (3.74") |
| Air Jack thread connection | 1/4 BSPP (G) |
Download User Manual (.pdf)
Accessories / Spare Parts
Air Jack 90 C Complete Set 4pc includes:
4 x Air Jack 90 C Air Jacks
4 x Air Jack 90 C Safety Prop
1 x Safety Prop Carry bag
3 x Quick Connect 8mm Pneufit T-fittings
4 x 1/4" Barb-fitting to Quick Connect 8mm
1 x Petcock ball valve with EURO pneufit fitting
10m (32.8ft) 8mm Quick Connect pneufit hose
10 x Cable ties
Specifications
• Air Jack body is high strength, machined aluminum extrusion for thinnest possible wall thickness.
• CNC manufactured high strength aluminum piston rod with anodized finish for long lasting durability.
• High strength, ultradurable, low friction polyoxymethylene bearings.
• Incorporates an internal high strength tension spring for maximum efficiency.
• Lightweight, easy to replace, hard-anodized aluminum foot.
• Lightweight design for motorsports use.
• 4pc aluminum mounting nuts included with every jack.
• 1/4 BSPP (G) thread for pneufit fitting.
• Anodized finish for long lasting function and corrosion-free appearance.
• Designed, developed and manufactured in Sweden.
• Laser engraved and proudly branded with the Swedish flag.
Lift capacity : / each
8 BAR (116 PSI) : 402 KG (886 LB)
12 BAR (174 PSI) : 603 KG (1329 LB)
Max operating pressure : 12 BAR (174 PSI)
Air Jack Measurements :
Height retracted : 349 mm (13.74")
Diameter : 89.5 mm (3.52")
Mounting nut diameter : 104 mm (4.09")
Min Ø mounting hole : 90 mm (3.54")
Max Ø mounting hole : 95 mm (3.74")
Total lift height : 251 mm (9.88")
Weight : 2325 g (4.927 LB)
Safety Prop Measurements :
Length : 258 mm (10.15”)
Grip length : 150 mm (5.90”)
Diameter : 69 mm (2.71”)
Depth : 95 mm (3.74”)
Weight : 530 g (1.16 LB)
