Air Jack 60 C 4pc Set

Complete set of 4pc Nuke Performance 20 BAR / 290 PSI Air Jacks: Fast, lightweight, reliable, and easy-to-use air jack kits for motorsports applications.

The all-new high-pressure air jacks from Nuke Performance are the ultimate enhancement for any motorsports vehicle. Designed for use with a compressed air bottle, they elevate your experience both on the race track and in the workshop, delivering next-level performance and convenience.

 Lightweight motorsports onboard air jacks
 20 BAR (290 PSI) - 30 BAR (435 PSI) work pressure
 To be used with a compressed air bottle
 Set with jacks, safety prop, and additional hose kit
 4pc set lifts 1792 KG (3950 LB) at as low as 20 BAR (290 PSI)
 Total lift length of 230mm (9.1")

The Nuke Performance Air Jack 60 Competition high-pressure air jacks are fast, lightweight, and reliable, making them easy to install even in tight chassis spaces, thanks to their compact diameter. Be prepared for any unexpected issues on track day—these air jacks enable swift and efficient repairs, so you can get back on the track in no time.

 Ultra-Lightweight, High-Strength Air Jacks: Engineered for Ultimate Performance and Durability.
The body is crafted from high-strength, machined aluminum extrusion, ensuring the thinnest possible wall thickness to achieve minimal weight without compromising functionality. Inside, it houses a robust aluminum piston rod with an anodized finish for exceptional durability. The internal bearings, made from ultra-durable, low-friction polyoxymethylene, are built to withstand the rigorous demands of global motorsports. These air jacks represent the next level of engineering, advancing beyond the popular low-pressure air jacks from Nuke Performance (available here).

 Elevate Your Performance: Customizable High-Pressure Air Jack System with Precision Control, all connected to a compressed air bottle.
The Nuke Performance Air Jack 60 Competition high-pressure jacks are designed for use with 18-30 BAR (260-435 PSI) provided by a compressed air bottle. Paired with our extensive range of accessories, it's easy to tailor an adjustable system to your needs.

 To be used with a compressed air / Argon bottle
 Optimal work pressure between 20-30 BAR (290-435 PSI)

At just 20 BAR (290 PSI), each air jack can lift 448 KG (988 LB), resulting in a total lifting capacity of 1792 KG (3950 LB) in a 4-jack setup. The high-pressure system requires a regulator for the compressed air bottle, allowing you to precisely adjust the pressure to suit each vehicle, ensuring compatibility with most motorsports applications using the high-pressure air jack setup from Nuke Performance.

 Air Jack 60C Safety Props reduce the possibility of accidents, included with all air jack kits.
Safety is paramount when working on or beneath your vehicle. When using air jacks, it's essential to use air jack locks/safety props (available here) to prevent accidents caused by pressure drops due to leakage, malfunction, or handling errors. The Nuke Performance 60C Safety Props clip securely into place when the air jack is fully extended, feature an easy-to-use handle, and come in a convenient carry bag. If you purchase your air jacks as part of one of our available kits, the necessary safety props are always included.

 Complete sets of 3 or 4 air jacks for all types of motorsports use, ensuring that you get the needed parts for your setup with minimal effort
Each kit comes with 3 or 4 jacks and safety props together with a nylon carrying bag for the safety props, to complement the jacks we offer several different options to optimize the installation.

 Hardline aluminum tube kit for space-efficient installations
 Nylon braided PTFE hose kit for fast and easy routing

Choose between the different hose / tube kit, the preferred pressure connection, and the wide range of accessories to get the kit that is perfect for your vehicle. Learn more about the different routing options here:
Air Jack 60 C Hardline Kit Part # : 580-10-101
AIr Jack 60 C PTFE Hose Kit Part # : 580-10-910

 Complete your Air Jack setup: Essential lances, valves, and accessories for seamless operation.
To operate the air jack setup, we provide a wide selection of accessories, allowing you to easily choose the option that best meets your specific needs. Be sure to explore all the available accessories to find the perfect fit for your setup, and take the time to learn more about the various options here:
Air Jack Male Connector, AN-6 Part # : 570-20-101
Air Jack Petcock Ball Valve Male Connector, AN-6 Part # : 570-20-102
Air Jack Quick Release Connector Valve, AN-6 Part # : 570-20-103
Air Jack Valve Enclosure Part # : 570-20-201
Air Jack Lance, AN-6 Part # : 570-01-201
Air Jack Lance High Pressure Hose 2m (6.5ft) Part # : 570-01-201

 What is the capacity and how much do the 4pc set high-pressure Nuke Performance Air Jacks 60C lift?
The Nuke Performance Air Jack 60 Competition high-pressure air jacks are designed for use with a compressed air bottle regulated to 18-30 BAR (260-435 PSI). At just 20 BAR (290 PSI), each air jack can lift 448 KG (988 LB), providing a total lifting capacity of 1792 KG (3950 LB) in a 4-jack system. And in this 4-jack set, available for most vehicles, the performance is pretty insane.

20 BAR (290 PSI) Air Jack setup :
Recommended operating pressure for Air Jack 60C.

30 BAR (435 PSI) Air Jack setup :
Maximum operating pressure for Air Jack 60C.

 How do I mount Nuke Performance Air Jacks to my vehicle?
We offer a range of steel brackets designed to be welded directly to the body or chassis of your build. These brackets are delivered untreated and can be easily adjusted to meet your specific dimensions.

 We recommend the pipe bracket for a rigid installation
 Brackets are best welded onto a weld-in cage or tube chassis

Whether you choose a plate or bracket, we recommend using both lower and upper attachment points to ensure a secure and durable installation. All bracket materials and designs are engineered to meet the requirements, making your installation process easier and more reliable with Nuke Performance mounting accessories.
Steel Plate Part # : 580-10-017
Steel Bracket Part # : 580-10-018
Steel Tube / Pipe Part # : 580-10-019 (Recommended)

 Designed and developed in Sweden, guaranteeing the highest possible precision, quality, and performance.
Developed and designed in Sweden, in-house by Nuke Performance. The Nuke Performance Air Jack 60C Competition, High Pressure air jacks is of the highest possible quality and embodies the exceptional standards characteristic of all lightweight motorsports products from Nuke Performance. The high pressure air jacks is co-developed with worldwide motorsports teams, ensuring that this second generation surpasses the first one and meets the absolute highest standards, or even makes a new standard of its own.

There is no substitute for the quality and performance of Nuke Performance.

 Air Jack 60 Competition, High Pressure Specifications
For more information about specifications, view the product manual.

* The Nuke Performance Air Jacks and their accessories should not be used with gases other than those specified in the compatibility list.
** Use a drop of thread locker for added security, but avoid excess to prevent difficult removal and thread damage.

 Download User Manual (.pdf)
 Accessories / Spare Parts

Air Jack 60 C 4pc Set includes:
4 x Air Jack 60 C Air Jacks
4 x Air Jack 60 C Safety Prop
1 x Nylon Safety Prop Carry Bag

Air Jack 60 C Hardline Kit includes: *
1 x AN-6 Female to Hardline tubing, 90-degree Hose End
4 x AN-6 ORB Male to Hardline tubing, 90-degree Hose End
3 x T-Fitting for Hardline tubing Hose End
10m (32.8ft) Aluminum hardline, OD 7.92mm (5/16")

Air Jack 60 C PTFE Hose Kit includes: *
1 x AN-6 Female to PTFE, 90-degree Hose End
4 x AN-6 ORB Male to PTFE, 90-degree Hose End
3 x T-Fitting for AN-6 PTFE Hose
10m (32.8ft) Full Flow AN-6 PTFE Hose

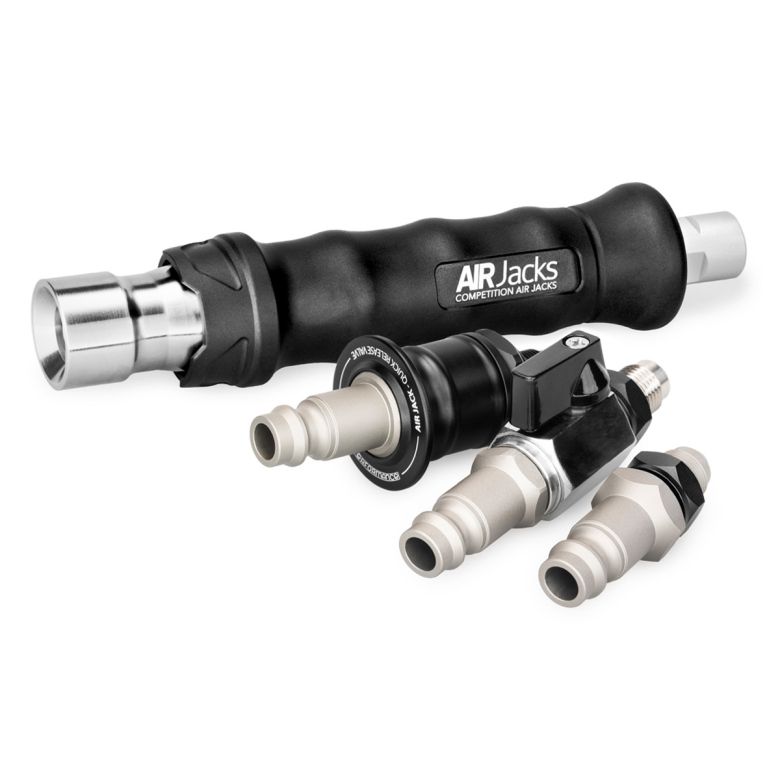

Available Air Jack Male Connectors: *
1 x Air Jack Male Connector, AN-6
1 x Air Jack Petcock Ball Valve Male Connector, AN-6
1 x Air Jack Quick Release Connector Valve, AN-6

* Included if chosen as an option, the kits are available with or without one of the additional hose/tube kits, and with or without one of the available male connectors/valves.

Take notice : Mounting brackets, air jack lance, elephant feet, and spare parts, all must be ordered separately as they are not part of the available kits.
